Roland® D-50 Keybed Removal
Last
Page
<
Page
Bottom
Next
Page
>

The D-50 keybed is attached with a number of brass mounting screws.

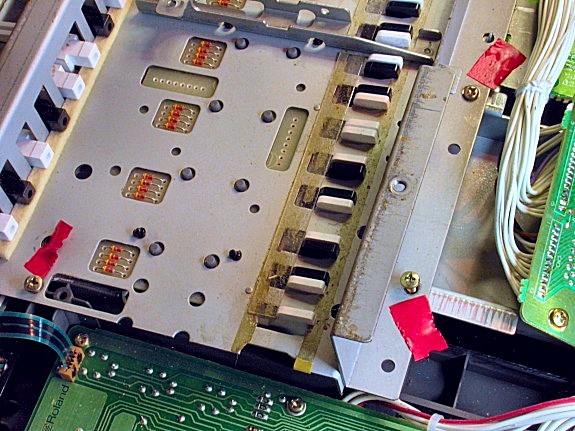

This photo shows the bass end of the keybed.  Three of the mounting screws are marked with red tape.

Keyboard Assembly Mounting Screws

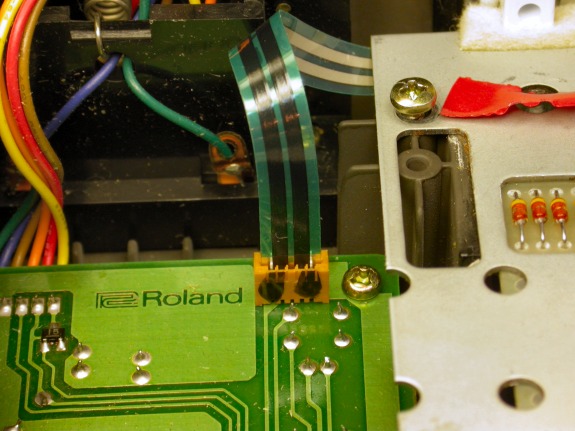

Also at the bass end is a flat flexible cable that needs unplugging.  It comes from the keybed's after-touch sensor.

Gently pull the cable out of its connector – only friction holds it in.

You can mark the connector to indicate which way the cable was inserted (see right).

Keyboard Pressure Connector

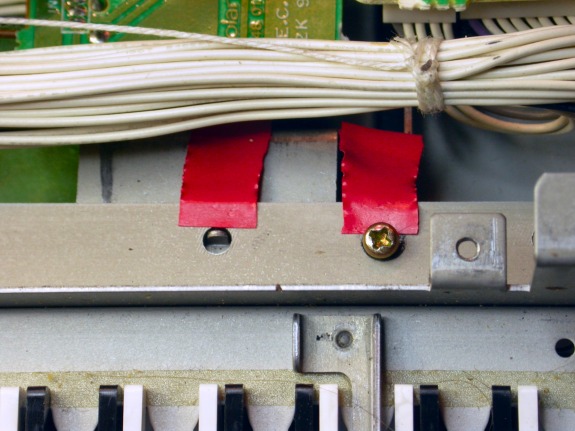

In the middle of the keybed, another mounting screw or two, previously hidden by the computer board, need removal.

More Keyboard Mounting Screws

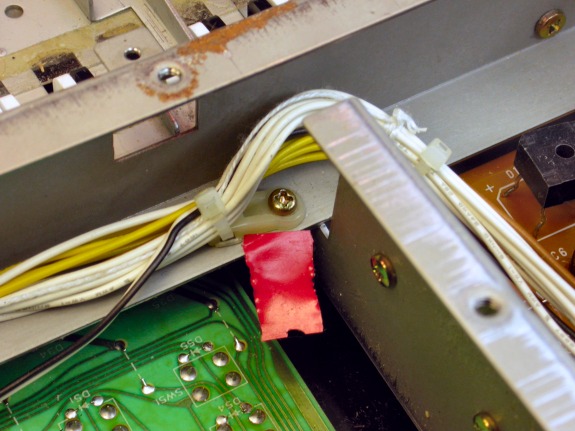

This particular mounting screw, near the power supply, also ties down a bundle of wires.

D-50 Keyboard Mounting Screws

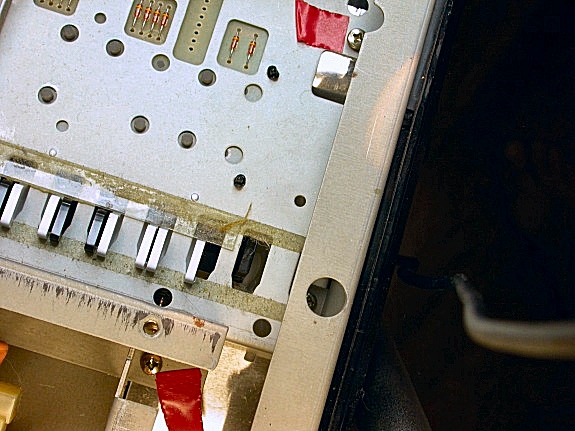

On the treble end of the keybed you'll find two more mounting screws (see right).

One screw is a little inconvenient but a long, skinny screwdriver should do the trick.

Roland D-50 Keyboard Assembly Screws

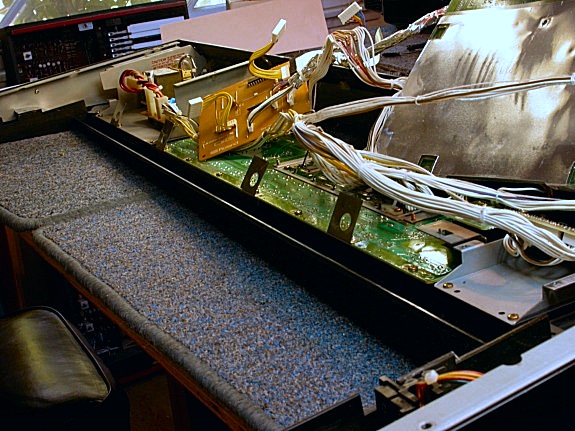

After all the mounting screws are taken out, the keybed can be removed from the D-50 shell.

It may take a few tries to find the perfect exit maneuver but this photo shows it can be done.

Roland D-50 Without Keyboard
