Valco 62-9033 1:  Disassembly and Examination
Last
Page
<
Page
Bottom
Next
Page
>

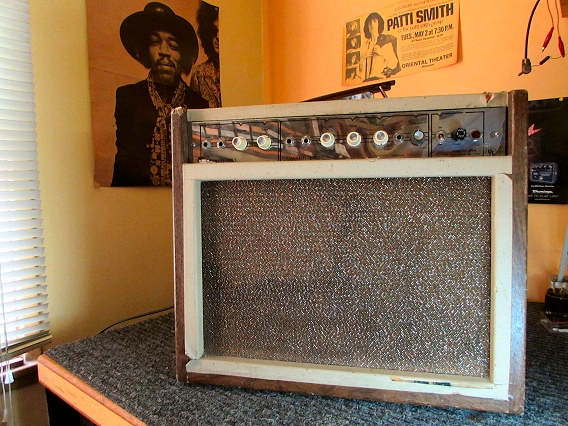

This Montgomery Ward 62 GVC 9033A guitar amp was made by Valco.

The amp has two channels, each having a Volume and a Tone control.

Channel 2 also has a Tremolo effect with Speed and Intensity controls and a Footswitch jack.

Valco 62-9033 guitar amp

For output, the amp uses a pair of 9-pin 6973 miniature beam power tubes.

There are also three 12AX7 tubes (two for the preamps and one for the tremolo) and a 5Y3 tube rectifier.

Valco 62-9033 rear

Disassembly of the amp is easy:

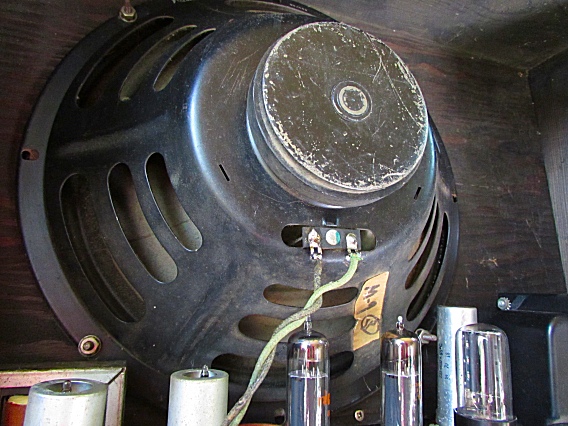

First, unsolder the two speaker wires seen here.

The green wire connects to the speaker "+" terminal and the black wire connects to the "–" terminal.

Then remove the two chassis screws on each side of the speaker cabinet.

Valco speaker wires

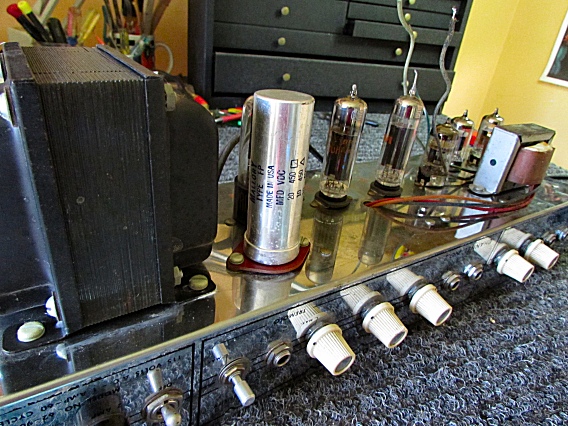

Here, the Valco amp chassis is out of the cabinet.

Pull out the two 6973 tubes before starting work on their sockets.

Chassis removed

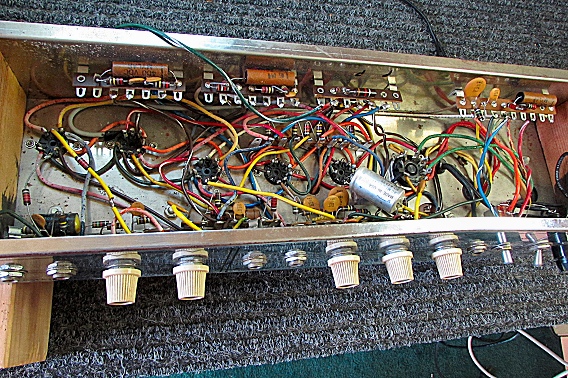

Set the chassis on wood blocks, as seen here, so it's steady and its preamp tubes are protected.

Inside chasis

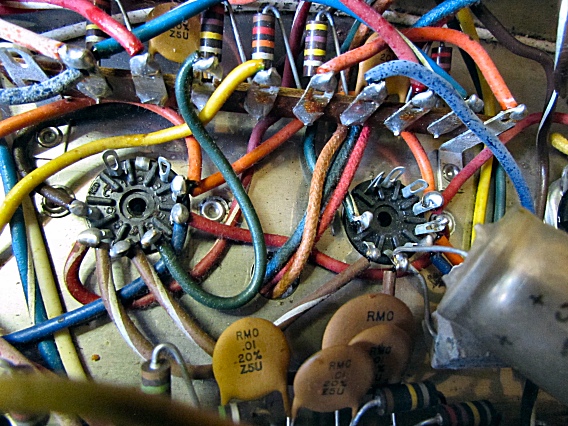

Here's a close-up of the wiring side of the 6973 power tube sockets, left and right.

We want to change the wiring of these two sockets so they're compatible with either 6973 or 6CZ5 vacuum tubes.

Original socket wiring

Valco 62-9033
