M-Audio® Keystation 88es 2:  Replacing the USB Jack
Last
Page
<
Page
Bottom
Next
Page
>

The Keystation's Input/Output Printed Circuit Board is now completely disconnected.

In this photo, the KEYBOARD assembly is removed, but it wouldn't have to be for this repair.

Remove the PC Board by taking out the five, gold screws that attach it to the bottom shell.

I/O Circuit Board

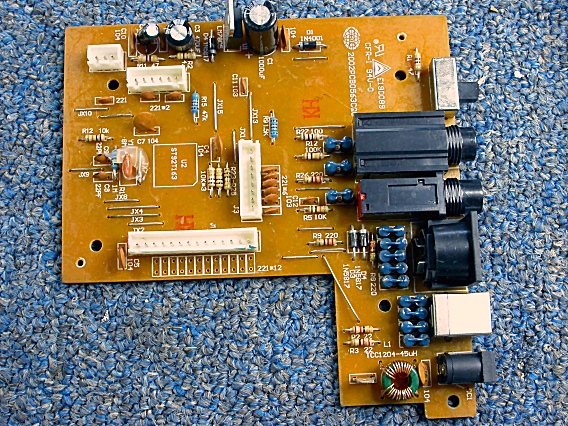

Here's the I/O Board removed from the Keystation.

I/O Board Removed

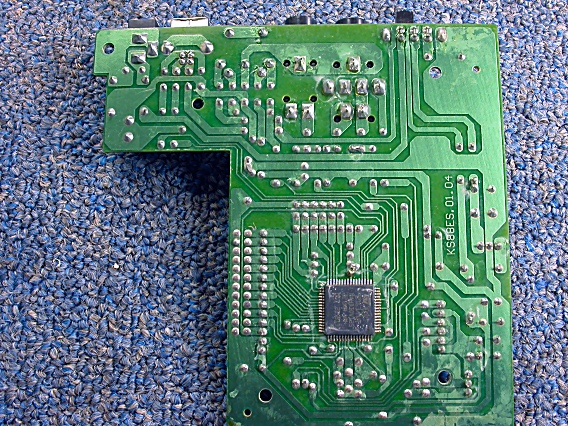

Here's the foil side of the board.

Underside of I/O Board

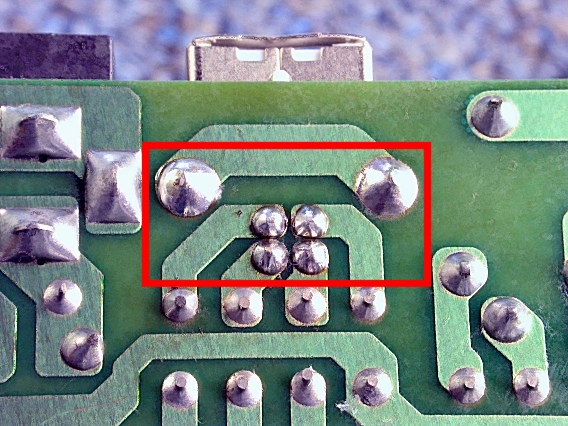

Here's a close-up of the six solder points that hold in the USB jack.

The two large solder points simply hold the jack's frame to the circuit board and aren't part of an electrical circuit.

The four, smaller points connect to the jack's electrical pins.

De-solder the six solder points, swap in a new USB jack, and re-solder the six points.

USB Jack Connections

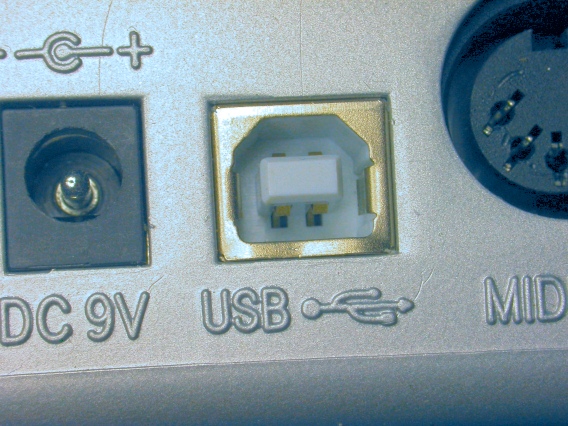

Here's the new USB jack installed in the reassembled, M-Audio Keystation 88.

Finished Job
