Panel
Switches

SPDT Toggle Switch with Center Off
For 3-Position Ground Switch upgrade.
Part # SWTG12CC
SWTG12CC
Click Photo to Enlarge

This switch replaces the 2-position Ground Switch in many vintage guitar amps by Fender® and others.

Read 'Why does my Amp Shock Me?' to see how the center-off position can remove the shock hazard in old guitar amps.

Specifications
ELECTRICAL RATING:
3A, 250VAC
6A, 125VAC
BUSHING DIAMETER:
7/16" (11.1mm)
MOUNTING HOLE:
1/2" (12.7mm)
BUSHING LENGTH:
1/2" (12.7mm)
BODY LENGTH:
1½" (38.1mm)
BODY WIDTH:
3/4" (19.1mm)
BODY DEPTH
(incl. terminals):
1-1/8" (28.6mm)
TOGGLE LENGTH:
5/8" (15.9mm)
TERMINALS:
1/4" wide solder tabs
MANUFACTURER:
Carling Technologies

Select Quantity:


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!

SPDT Toggle Switch with Center Off
Rare, Compact Body — for 3-Position Ground Switch
Part # SWTG12C
SWTG12C
Click Photo to Enlarge

This switch is like the previous item but has a smaller body for smaller spaces.

It's a new but discontinued toggle switch made by Multicomp.

Read 'Why does my Amp Shock Me?' to see how the center-off position can remove the shock hazard in old guitar amps.

Specifications
ELECTRICAL RATING:
3A, 240VAC
6A, 120VAC
BUSHING DIAMETER:
7/16" (11.1mm)
MOUNTING HOLE:
1/2" (12.7mm)
BUSHING LENGTH:
1/2" (12.7mm)
BODY LENGTH:
7/8" (22.2mm)
BODY WIDTH:
5/8" (15.9mm)
BODY DEPTH
(incl. terminals):
5/8" (15.9mm)
TOGGLE LENGTH:
5/8" (15.9mm)
TERMINALS:
3/16" wide solder tabs
MANUFACTURER:
SPC / Multicomp
MANUFACTURER NO:
GPT4613S-A

PRICE - $17.50 USD each



FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!

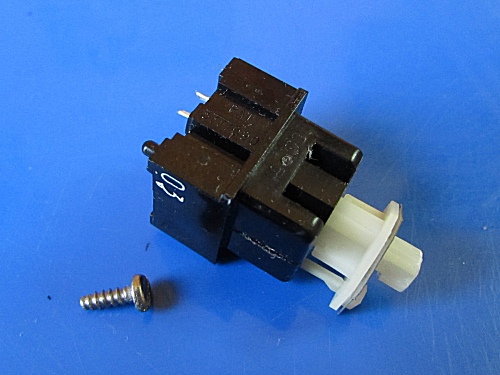

ARP® Omni
Push Switch
Part # UOMNI-SW
UOMNI-SW
Click Photo to Enlarge

This rescued and tested used part is an alternating action, single-pole push switch that turns on and off the Voices and Footages of an Arp Omni synth.

Included is the screw that secures the switch to the circuit board.

This is ARP Part# 1903002 or Arp/Mfg# DC-51-03.

The button for this push switch is available on our Buttons page.

PRICE - $16.95 USD

** THESE ARE SOLD OUT **


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!

M-AUDIO® KeyStation Pro88
Power Switch
Part # UPRO88-SW
UPRO88-SW
Click Photo to Enlarge

This is a rescued power switch assembly for the M-Audio Keystation Pro88 MIDI controller.

It includes the connecting cable and 6-pin connector.

PRICE - $12.50 USD


** THESE ARE SOLD OUT **


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!

MACKIE®  VLZ and CFX Mixers
Push Switch
Part # SWPLMK2
SWPLMK2
Click Photo to Enlarge

Double-Pole, Double-Throw, vertical PC-mount push switch for Mackie mixers.  Snap-in terminals.

Genuine Mackie - New Old Stock
Mackie Part #500-037-00

PRICE - $18 USD each



FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!

S W I T C H   F U N C T I O N S   B Y   M O D E L
M I C R O S E R I E S
1202-VLZ   •   1202-VLZ Pro
Solo Low Cut AUX1
Select
EFX to Monitor Main Mix ALT 3-4 Tape
M I C R O S E R I E S
1402-VLZ    •   1402-VLZ Pro
Solo Level
+4/-10
AUX1
Select
EFX to Monitor Main Mix ALT 3-4 Tape
CFX-12   •   CFX-16   •   CFX-20
Low Cut Pre Fader Mute Assign
1-2
Assign
3-4
Assign
Left
Assign
Right
EFX Wide EFX Bypass Break Solo (PFL) Phantom Power
1604-VLZ Pro   •   1642-VLZ Pro
Low Cut Pre Fader Mute Assign
1-2
Assign
3-4
Assign
L-R
AUX 5/6
Shift
Tape to
Main Mix
AUX1 Solo AUX2 Solo AUX4 to
C.R. Phones
AUX3 to Main/Subs -> 1-2 / 3-4
Sub to Main
LEFT
Sub to Main
RIGHT
  Ctrl Rm Src
MAIN
Ctrl Rm Src
SUBS 1-2
Ctrl Rm Src
SUBS 3-4
Ctrl Rm Src
TAPE
MACKIE®  VLZ and SR Mixers
Push Switch
Part # SWPLMK4
SWPLMK4
Click Photo to Enlarge

4-Pole, Double-Throw, vertical PC-mount push switch for Mackie mixers.  Straight terminals.

Genuine Mackie - New Old Stock
Mackie Part #500-012-00

PRICE - $24 USD each

** THESE ARE SOLD OUT **

FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!

S W I T C H   F U N C T I O N S   B Y   M O D E L
M I C R O S E R I E S
1202-VLZ
Mute XLR Output Pad Assign to Main Mix
M I C R O S E R I E S
1402-VLZ
Mute XLR Output Pad Solo Mode
1604-VLZ
Solo AUX Send Solos Solo Mode
SR24.4
Solo AUX Send Solos AUX Return Solo
Subs Solo Talkback Assigns
SR40.8  •  SR56.8
Solo AUX Send Solos AUX Return Solo
Subs Solo Left, Right & Center Solos Matrix Solos
SEQUENTIAL® Prophet 5 and Prophet 10
Panel Switch
Part # UP5-SWP

UP5-SWP
Click Photo to Enlarge

Used, tested pushbutton switches for the Sequential Circuits Prophet-5 and Prophet-10 synths.

These are the original, Prophet panel switches made by Schadow.

Choose from:
Black cap, red LED (SCI #S-028)
Gray cap, red LED (SCI #S-029
Orange cap, red LED (SCI #S-030)
Gray cap, no LED.


Select:


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!

VOX Continental
Mains or Vibrato Switch
Part # SWPLVOXC
SWPLVOXC
Click Photo to Enlarge

This is a great replacement for the obsolete panel switches in many Vox Continental organs.

It replaces the MAINS switch, the VIBRATO switch, or the 8'-16' BASS switch.  It's 16A rating exceeds that of the 13A original.

For a perfect physical fit, just make a slight modification to the switch body (see the Vox Continental Repair Story).

Specifications
ELECTRICAL RATING:
16A, 125/250 VAC
ELECTRICAL LIFE:
10,000 cycles
CONTACTS:
Silver plated copper

Select Quantity:


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!
